OPERATORS
We professionally install high quality gate operators for residential and commercial applications. Your AutoGate Systems comes with SEA, VDS or DOORKING gate operators. These high quality gate openers are designed for smooth, consistent and reliable operation with all of our custom gates.
WE OFFER SEVERAL TYPES OF GATES OPERATORS:
THE BENEFITS
HYDRAULIC IN-GROUND OPERATORS

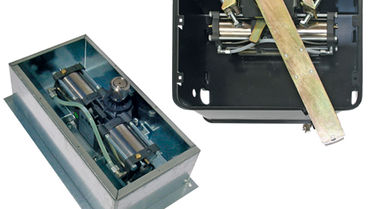

SEA LYRA
Operator Specification:
• Hydraulic in-ground operator for residential use, for max leaf length up 12 feet or 1600 lbs max weight
• Hydraulic silence and reliability.
• Version with separate hydraulic unit and jack
• The functioning of the operator through oil and the inner lubrication of all mechanical components grant a long time lasting
• Release with customized key in case of power failure
• Version with adjustable hydraulic slow down for a soft approaching of the leaf
• Galvanized box for jack (included). The CP version is a self carrying box out of steel (cataphoresis)
• Available version with double lock (AC)or without lock (SB) (on request)
GALLERY SEA LYRA
SEA SUPER LYRA
Operator Specification:
• Cataphoresis treated steel foundation box included in the operators’ code number
• Super Lyra carrying box for easy assistance and release system with key and lever LOCKINTP (obligatory accessory)
• Bigger size cylinder
• Bigger size gear
• Over 35% more torque than regular LYRA
• Over 100% more resistance of mechanical components
• Shaft compatible with Jack models
• Torque-pressure valve
GALLERY SEA SUPER LYRA
SEA COMPACT 1600
SEA Compact Single 1600 In-ground Swing Gate Operator Kit 122COMPACTS Regular 13 x 9.5 x 3 Plastic Enclosure and accessories, for gates up to 1600 lbs. & 16 feet (Max Cycles 45 Per Hour).SEA’s well designed and Compact Single 1600 Hydraulic Swing Gate Operator Kit is an all-in-one reliable gate opener kit designed for use in residential or multi-family condominium applications with gates up to 13 feet in length and a weight up to 1600 lbs.
Operator Specification:
-
Noiseless and hydraulic reliability
-
The functioning of the operator through oil and the inner lubrication of all mechanical components grant a long time lasting
-
Optional mechanical/electronic limit switch IP 67 for accurate operation on physical stops.
-
Adjustable mechanical positive stops in opening and closing in the box (optional)
-
Adjustable hydraulic slowdown for smooth leaf approach
-
Universal right / left hand side
-
Available on request models with bigger pumps for an highest speed
-
Duty cycles*: 45 per hour
-
Bigger size gear than regular COMPACT
-
Bigger cylinder than regular COMPACT
-
Over 35% more torque than regular COMPACT
-
Over 100% more more life resistance 20 feet or 2600 lbs
* Duty Cycles depend on gate size and installation
GALLERY SEA COMPACT 1600
HYDRAULIC PISTON OPERATORS
SEA SUPER FULL TANK
Operator Specification:
• Hydraulic swing operator for Heavy Duty Gate Applications
• Max torque 2500 daNm
• Stroke 19 inches
• Back and front flange in solid machined aluminium
• Hydraulic slow down
• Oil lubrication of all mechanical components
• Hydraulic operator for max leaf length up to 30 feet or max leaf weight up to 4400 Lbs
• Version AC with Lock in opening and closing
SEA FULL TANK
Operator Specification:
• Hydraulic swing gate operator for condominium - industrial use for leaf lengths up to 23 feet
• Oil lubrication of all mechanical components
• Anti crushing guaranteed through by-pass valves for max. thrust adjustment
• Standard, oscillating aluminium back fixing fork
• Round joint for stoke management
• Release system protection by metal lock with release key at the inside.
SEA HALF TANK
Operator Specification:
• Hydraulic swing gate operator for condominium use and for leaf lengths up to 23 feet
• Extremely silent with hydraulic reliability
• Anti crushing guaranteed through by-pass valves for max. thrust setting
• On request version with hydraulic slowdown only in closing or in opening/closing
• Standard ball joint on all versions for precise adjustment of the stroke
• Standard aluminium oscillating back fixing fork
• Version (AC) with lock in opening and closing
• 0,8 inches rod diameter
• Piston stroke 10.63 inches
• Round joint for stroke management
VDS PHV Hydraulic Swing Gates Automation
Features:
-
Reversible/Irreversible
-
Leaves up to 23 ft and 1700lbs
-
Anta Max 4mt (phv 240) – 7mt (phv 360)
-
Sturdy aluminum and die-casting structure
-
Rod stroke mm 242 (phv 240) – mm 362 (phv 360)
-
Steel rod rectified and chromed 20 mm
-
Very quiet operation
-
Electric motor in bath of oil
-
Valve adjustment for reversibility or reversibility
-
Hydraulic adjustment for thrust
-
Hydraulic slow-down adjustment in closure
-
Aluminum rod cover included
-
Manual release with key
-
90° opening
-
Quick installation with multi-position brackets
-
Power supply 230Vac
Perfomance Requirements:
-
Operating cycle intensive
-
Frequency of use 100%
-
Thrust 6252/7793N
VDS PH Hydraulic Swing Gates Automation 230V
Features:
-
Reversible
-
Leaves up to 9.8 ft and 1100lbs
-
Sturdy aluminum structure
-
Rod stroke mm270 – mm390
-
Chromed steel rod with joint uni ball
-
Very quiet operation
-
Electric motor in bath of oil
-
Manual release with key
-
90° opening
-
Quick installation with multi-position brackets
-
Hydraulic slow-down adjustment in closure
-
Power supply 230v-24v
-
Needs electro lock
Perfomance Requirements:
-
Operating cycle intensive
-
Frequency of use 90%
-
Thrust 1850/2240N
VDS PM1 Electromechanical Swing Gates Operator 230V
Features:
-
Irreversible
-
Leaves up to 9.8 ft and 440lbs
-
Sturdy aluminum structure
-
Rod stroke mm 300 – mm 400 – mm 600
-
Stainless steel rod with dust scraper
-
Very quiet operation
-
Electric motor with electric brake
-
Thermal cut out 140°
-
Manual release with customized key
-
Lithium grease lubrication of mechanical parts against corrosion, oxidation and rust
-
120° opening
-
Quick installation with multi-position brackets and cover for brackets in technopolimers
-
Anti-squashing system (en 12453)
-
Slowing down function (en 12453)
-
Power supply 230 vac
Perfomance Requirements:
-
Operating cycle semi-intensive
-
Frequency of use 50%
-
Opening 15 – 25 – 30 sec.
-
Thrust 1500N
HYDRAULIC PISTON OPERATORS GALLERY
ELECTROMECHANICAL OPERATORS
DOORKING 6100
The Model 6100 operators is designed to operate vehicular swing gates in residential and commercial applications. These operators are designed so that they can be either pad or post mounted without any costly and time consuming field modifications. You need to specify which mounting method when ordering. The unique design of these operators allows the gate arm to be attached to the bottom rail of the gate. This eliminates the need for any brackets to be welded to the face of the gate and creates an aesthetically pleasing installation.
Features:
-
Self-adjusting, no maintenance magnetic limits.
-
Overlap feature for dual swing gate operation.
-
Designed with a built-in primary and secondary entrapment prevention system.
-
Ports for plug-in loop detectors.
-
Fail-safe release.
-
Tamper detect circuit.
-
Gate tracker reporting output.
-
Programming switches.
-
Built-in reset switch.
-
Built-in power On/Off switch.
Perfomance Requirements:
-
Maximum gate width 14-feet.
-
Maximum gate weight 500 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
-
Swings gate 90 degrees in approximately 10-seconds.
-
1/2 HP continuous-duty motor.
-
115 VAC, 5.4 Amps.
-
Class I and Class II applications.
-
Compliant with UL 325 and 991. ETL listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional secondary entrapment protection devices may need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
-
Dimensions (operator only): 13.5"W x 11"H* x 23"D (**27.75"D with convenience open option) (* Height of operator only. Actual height above ground is determined by which mounting method is used)
ELECTROMECHANICAL GATE OPERATORS GALLERY
SLIDING GATE OPERATORS
DOORKING 9100
DKS 9100 Slide Gate Operators provide durability and high-cycle usage. The innovative fail-safe design of these operators significantly reduces the chance of injury or entrapment and makes these operators the safest Slide Gate Operator in the market today. Designed with versatility in mind, the 9100 Operators can be configured for front, center or rear drive applications and can be pad or post mounted. They are offered with a metal or polypropylene (Poly) cover. Operators with the Poly Cover include a MicroPlus RF Kit (1 TX + 1 REC).
Features:
-
Self-adjusting, no maintenance magnetic limits.
-
Partial-open feature.
-
Anti-tailgating feature.
-
Gate tracker reporting output.
-
Ports for plug-in loop detectors.
-
Two convenience outlets.
-
Fail-safe release (fail-secure optional).
-
Programming switches.
-
Built-in reset switch.
-
Built-in power On/Off switch.
Specifications:
-
Maximum gate length 30-feet.
-
Maximum gate weight 1000 pounds*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
-
1/2 HP continuous-duty motor.
-
115 VAC, 5.4 Amps.
-
Operator is shipped with chain brackets and 20-feet of #40 chain.
-
Class I, II, III and IV applications.
-
Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
-
Dimensions: 12"W x 24"H x 11.5"D
VDS AG FUTURE Sliding Gates Operator 230V-380V
Sturdy aluminum die-casting structure, powder painted. Manual release with personalized key. Oil bath and level indicator. Mechanical or magnetic limit-switch. Control panel housed internally. Gates up to 1,600lbs.
Features:
-
Structure in die-cast aluminum, powder painted
-
Steel and cast gears obtained from solid
-
Startor and mechanical parts in oil bath- except 800 kg version, grease lubricated
-
Available with and without control unit
-
Control unit with built in radio receiver and aerial, control unit box with air-stop seal against moisture and insects
-
Pre-wired and easy programming software
-
High-performance electric motor
-
Release device with customized key
-
Electronic torque control
-
Very quiet operation
-
Anti-squashing system and slowing down function (en 12453)
-
The 1,600 lbs three-phase version comes with a control unit with soft start sot stop function
-
Power supply 230Vac – 380Vac
VDS TOM Sliding Gates Operator 230Δ – 400Y Vac
Ideal for large gates that require an intensive use solution. 10,000lb gate capacity. 3 phase high torque gear motor (static phase converter included for single phase output). Mechanically locked when motor is stood. Lever release in the event of power cuts. Mounting plate. Steel powder coated casing. Z16 Rack. Motor power 750W. Absorbed current 2.5 amp.
Features:
-
Structure in painted steel and stainless steel, cover in abs
-
Steel and bronze gears obtained from solid
-
Air-cooled engine and reduction in bath of oil
-
Available with and without control unit
-
External control unit with watertight box
-
High-performance electric motor
-
Available with mechanical limit switches
-
Release device with hex wrench
-
Very quiet operation
-
Motor not provided with clutch, provide with safety equipment
-
Safety microswitch motor door
-
Three phase motor 230 – 400Y vac
SEA TAURUS CHAIN
Features:
• Electromechanical operator for max gate length up to 16 feet and max weight 800 lbs
• Mechanical limit switch
• Encoder (detector sensor) for reserve on obstacle
• Electronic anti-crushing clutch
• Adjustable slowdown in opening and closing
• Led light in option on all models
• Release system with robust aluminium lever and metal lock
• Available in rack or chain configuration
SEA ORION Box 24V Fast Chain
Features:
• Electromechanical operator for max leaf length up to 25 feet and max weight 900 lbs
• Metal cover with cataphoresis treated box
• Case in steel
• 24V Low voltage
• Slow down in opening and closing with control board USER 1 24V DG
• Mechanical limit switch
• Ball bearing on the wheels
• Built - in battery back up system
SEA Lepus Box Inox
Features:
• Driveway gate opener in oil bath for opening up to 37 feet or max weight 2000 lbs
• Electric motor and reduction gear in oil bath
• Mechanical clutch in oil bath
• Ball bearing wheels
• Stainless steel case
SEA TAURUS Box 1000 Fast Chain
Features:
• Electromechanical operator for max leaf length up to 25 feet and max weight 1000 lbs for residential use
• It is a unique compact motorized gear box
• Slow down in opening/closing with GATE DG series board
• Reverse on obstruction
• Easy limit switch adjustable with screws
• Easy manual release with key
• Receiver included
• Ball bearing on the wheels
• Buzzer alarm
• Digital control unit GATE 1 DG on board
• Yellow zinc metal chassis will last many years
SEA Lepus Box Inox 24V
Features:
• Driveway gate opener in oil bath for opening up to 37 feet or max weight 1800 lbs
• 24V version equipped with battery back up
• Electric motor and reduction gear in oil bath
• Mechanical clutch in oil bath
• Ball bearing wheels
• Stainless steel case
SEA SATURN 24V Oil Fast Rack
Features:
• Solid, die-cast aluminum body
• High quality mechanical limit switches
• Micro-switch for stop function on release lever in case of assistance
• Optional emergency batteries for operation in case of power failure
• Gears housed in a single piece cast aluminum block
• Emergency batteries and solar panel KIT SUNNY in option
• Electronic clutch as an extra anti-crush safety device
• Reversing system in case of obstruction
• Release system with aluminium lever protected by lock
• FAST model: can be set on different speeds up to 1 1/2 ft/sec
• Duty Cycles*: 60 %
SEA TAURUS Gear Rack
Features:
• Electromechanical operator for motorized gate with max leaf length up to 20 feet and max weight 800 lbs
• Nice design, compact and easy to install
• Available in rack or chain configuration
• Die-cast aluminum body with cataphoresis treated
• Encoder (detection sensor) for reverse on obstacle
• Simple and quick installation
• Electronic anti-crushing clutch
• Mechanical limit switch
• Optional micro-switch on release lever
• Adjustable slowdown in opening and closing
• Led light in option on all models
• Release system with robust aluminium lever and metal lock
• Adjustable bracket for chain limits
SEA LEPUS Rack Industrial
Features:
• Gearmotor in Oil Bath for intensive use for sliding gates up to 40 Ft and max 3800 Lbs weight
• Robust, cataphoresis-treated polyester paint sheet housing for heavy-duty applications of industrial type
• Mechanical clutch for max. anti-crushing safety
• Positive electric brake (only on version reversible)
• Gearmotor in oil bath
• Mechanical limit switches
• Pinion Z20 module 4
• Encoder (except version Reversible)
• Ray DIN for accessories
• Operator equipped with UNIGATE inverter control unit
SLIDE GATE OPERATORS GALLERY
